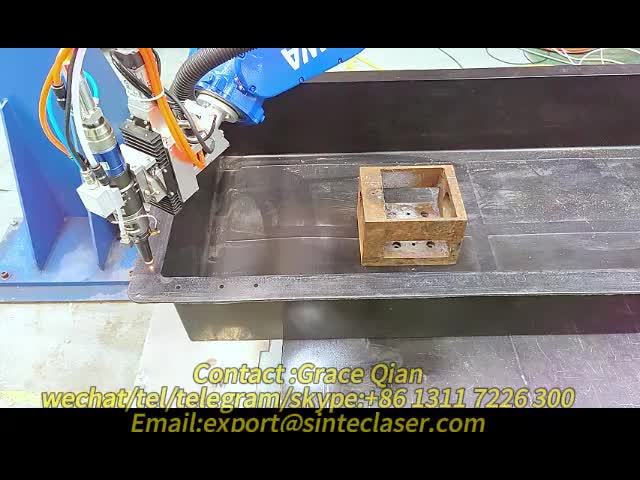

Raycus Laser Source 6 Axis 3D Robot Laser Cutter use for Glass fiber helmet ,Carbon fiber helmet,Kevlar etc helmet

Widely used for cutting edges and holes in various sheet metal stretching parts and covering parts; 3D arc cutting and hole position cutting of various hardware shaped pipe fittings. It is an aluminum alloy frame, baby bike frame, new energy electric vehicle, electric tricycle, beach bike, motorcycle industry, fitness equipment flat tube and other irregular three-dimensional metal parts, composite materials such as glass fiber, carbon fiber, Kevlar, and some plastic cutting holes, edges, and arc cutting tools.

Main features:

• Strong adaptability to materials, able to adapt to cutting and processing of various irregular workpieces;
• High production efficiency, which can replace traditional manufacturing processes such as trimming and punching molds;
• High economic efficiency, significantly reducing the research and development cycle of new products, and seizing market opportunities;
• High cutting accuracy, smooth and burr free cutting surface, meeting the manufacturing accuracy requirements of the locomotive industry;
• The operation is simple and fast, with a rich process database embedded, which can be called or modified with one click;
• Stable and reliable performance, efficient and energy-saving, low maintenance costs, and long service life;
• Strong scalability, can increase external axes for linkage or collaborative processing, and shorten cutting time;
• Green and environmentally friendly processing, no production of cattle pollutants, no consumables, and high yield rate;

Ordering Guide: Model STC-XXXX-YY-Z-AA

Optional:

1. High precision six axis industrial robot: Robots can be selected based on process requirements such as workpiece size and cutting accuracy requirements. The following robots can be perfectly matched with PLC systems, offline mapping software, displacement machines, and protective rooms.

2. Robot installation method: A. Robot inversion: paired with a gantry frame to expand processing space, very suitable for flexible processing of large and ultra long workpieces; B. Robot formal attire: can be paired with a multi-station workbench, with a small footprint and flexible posture, suitable for cutting small workpieces.

3. Customized fixture: Different types of linkage or collaborative displacement machines, sky rails or ground rails, and supporting fixtures can be developed based on the processed workpiece to achieve precise and efficient cutting of irregular workpieces of different materials, shapes, and sizes.

4. Offline programming map: Equipped with a manual teaching device as standard, it can directly generate, edit, and transfer processing programs without programming; Alternatively, a 3D offline simulation system can be installed for direct digital and analog import, generating cutting paths with one click, shortening the preparation time before processing, and easily adjusting to the optimal cutting state.

Raycus Laser Source 6 Axis 3D Robot Laser Cutter use for Glass fiber helmet ,Carbon fiber helmet,Kevlar etc helmet

FAQ:

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across

the world. We need your machines running in order to keep your business running.

2),Q: I am not sure if this machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and cutting thickness,

then I will recommend you the most suitable machine for you.

3),Q: Are you factory or trading company?

A: We are factory, which manufactures CNC cutting machines , with 18 years experience

in CNC machine’s industry.

4),Q:How can i do if the machine goes wrong?

A:If confronted with such problems,online service is offered,you could contact our sales.

Also,we offer engineer delivery service.Please contact us asap and don’t try fix the

machine by yourself or someone else.We will response within 12 hours as quick as we

can to solve it for you.
